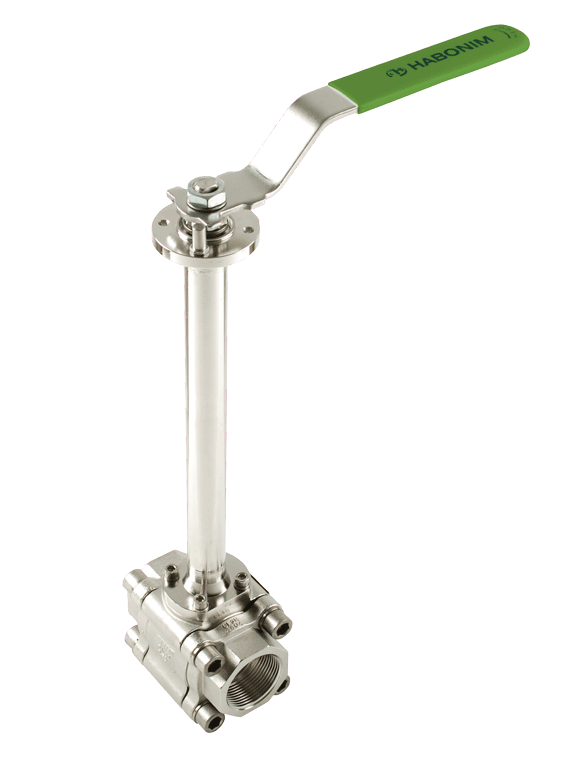

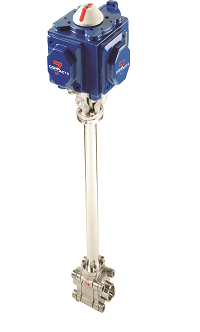

Cryogenic Floating Ball 3 Piece
C47
- Size Range
- 1⁄4”- 6” (DN8-DN150)
- Pressure Range
- Class #300/600, 50/100 bar, 750/1500 psi
Design features
• Solid one-piece high torque durable stem
• Tight stem-to-ball directional engagement, ensures relief hole alignment
• Strict materials and manufacturing tolerances control.
Efficient heat transfer
• Narrow space between extension ID and stem OD allows the stem seal to remain at an ambient temperature.
No trapped cavity
• Relief hole on the upstream sphere of the ball to prevent pressure build-up in the cavity.
Flexible bonnet installation angle
• Up to 45° from vertical for 12” bonnet (per BS6364 guidelines)
• Up to 15° from vertical 6” bonnet (not BS6364 compliant).
Read more
- Solid one-piece high torque durable stem.
- Tight stem-to-ball directional engagement, ensures relief hole alignment.
- Strict materials and manufacturing tolerances control.
Special mechanical design and construction
- A narrow space between the extension ID and the stem OD allows the
stem seal to remain at an ambient temperature.
- A narrow space between the extension ID and the stem OD allows the
Efficient heat transfer
- Relief hole on the upstream sphere of the ball to prevent pressure buildup in the cavity.
- Single-side or self-pressure-relief sealing for bidirectional full pressure service.
No-Trap Cavity
- Up to 45° from the vertical axis for the 12” bonnet (per BS6364 guidelines).
- Up to 15° from the vertical axis for the 6” bonnet (not BS6364 compliant).
Flexible bonnet installation angle
- Highly visible arrows on body and bonnet top.
- “T” mark on the stem, showing relief hole direction.
Double isolation / double block and bleed designs available upon request
Clean assembly and packing
Flow direction indicators (for valves with preferred flow direction)
Downloads
IOM

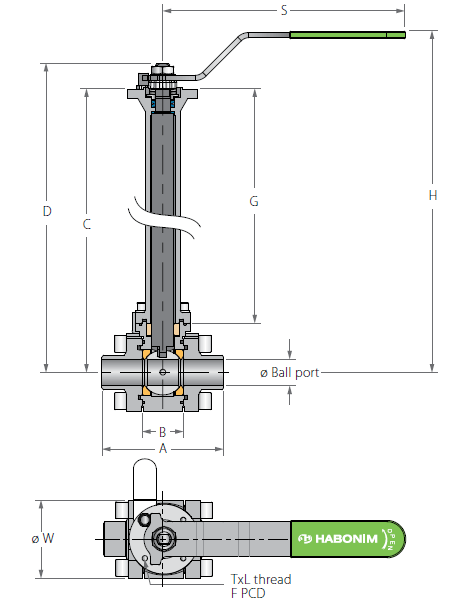

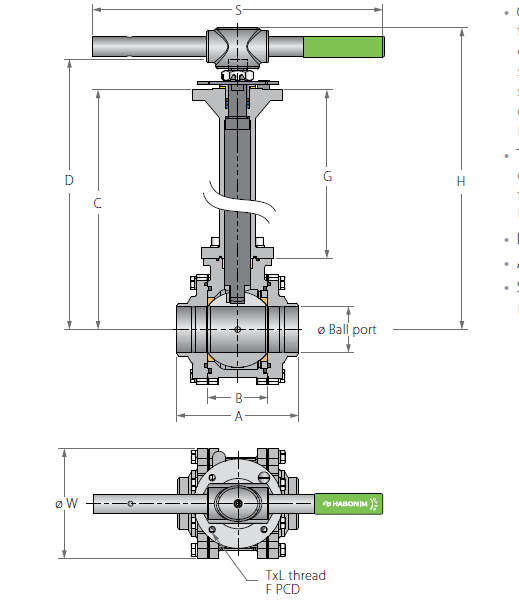

C47 Series- technical drawing
