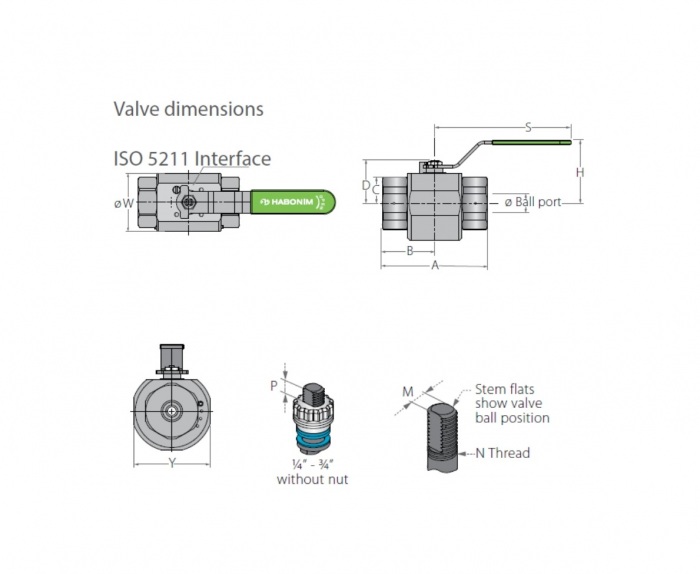

Hydrogen Service High Pressure Floating Ball 3 Piece Threaded-Body

H24

Size range:

1⁄4”- 1⁄2” (DN8-DN15)

Pressure range:

PN550 (8,000 psi)

Hydrogen Service High-pressure Floating Ball 3 Piece Threaded-Body instrumentation valve. Rated to 550 bar / 8,000psi.

Actuator ready with ISO plate.



  • H24

  • H24

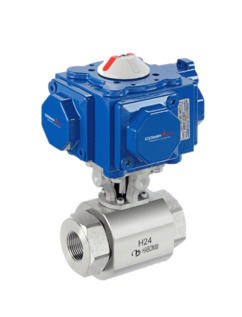

Actuation



The COMPACT actuator is a quarter-turn rack & pinion pneumatic actuator that doubles the torque and cut by half the piston travel of standard pneumatic actuators.
The superior performance is achieved by Habonim’s patented four piston design, which generates torque around a centrally located piston, this translates into:
                  • Double the power for the same size actuator or Half the size for the same amount of power
                  • Much faster opening and closing time.
A full range of Mounting Kits are available, allowing optimized mounting and use of the COMPACT actuator for valve automation with Habonim’s valves and simple integration with valves that have a standard ISO-plate mounting interface.
Valve Automation Packages is offered based on Habonim’s standard and costume made valves and actuators or as costume made packages with valves, actuators and top-works per customer requests.

More info

Special use

Hydrogen Service Ball Valves (H):

Hydrogen light atomic weight and molecule structure turning hydrogen-use equipment sealing into a challenge requires special designs, mechanisms and expertise. Hydrogen is highly combustion and flammable making leakage prevention an essence for safety and integrity of systems and materials selection should consider hydrogen effects as Hydrogen Embrittlement (HE).



More info
