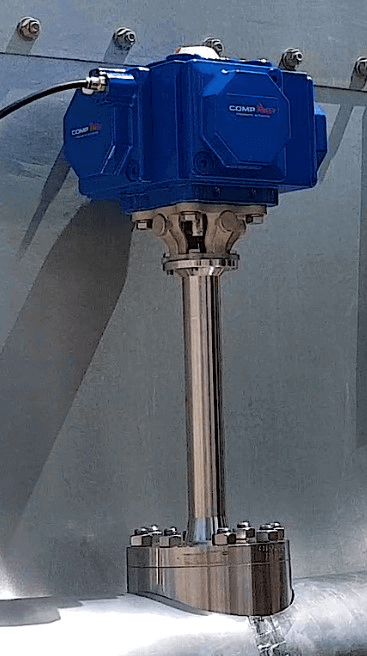

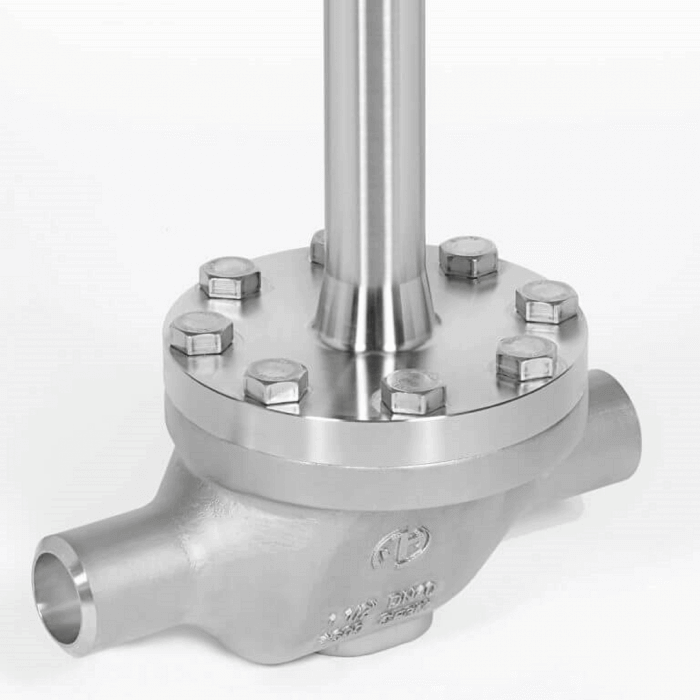

Cryogenic Top Entry Trunnion Mounted Ball Valve
C52
- Size Range
- 1 1/2”- 6” (DN15-DN150)
- Pressure Range
- Class #300, 50 bar, 750 psi

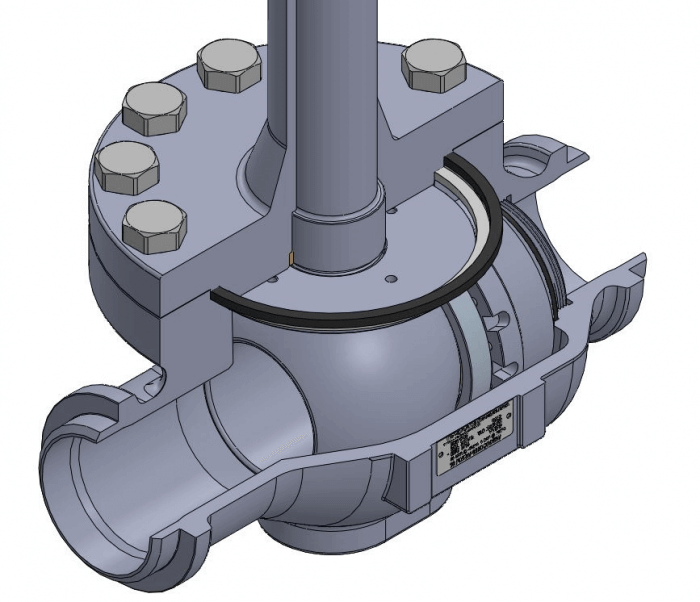

Design features
• Top entry Trunnion mounted C-Ball Design.
• Actuated or gear operated
• Fully bidirectional
• Total HermetiX Integrity package
• Extended buttweld ends
Extended Hub optional kit
• Extends valve top over the insulation boundary
• Allows inner parts access and maintenance without dismantling the insulation
Read more
-
- Solid one-piece high torque durable stem.
- Tight stem-to-ball directional engagement, ensures relief hole alignment.
- Strict materials and manufacturing tolerances control.
Special mechanical design and construction
-
- A narrow space between the extension ID and the stem OD allows the
stem seal to remain at an ambient temperature.
- A narrow space between the extension ID and the stem OD allows the
Efficient heat transfer
-
- Relief hole on the upstream sphere of the ball to prevent pressure buildup in the cavity.
- Single-side or self-pressure-relief sealing for bidirectional full pressure service.
No-Trap Cavity
-
- Up to 45° from the vertical axis for the 12” bonnet (per BS6364 guidelines).
- Up to 15° from the vertical axis for the 6” bonnet (not BS6364 compliant).
Flexible bonnet installation angle
-
- Highly visible arrows on body and bonnet top.
- “T” mark on the stem, showing relief hole direction.
Double isolation / double block and bleed designs available upon request
Clean assembly and packing
Flow direction indicators (for valves with preferred flow direction)
Downloads
IOM

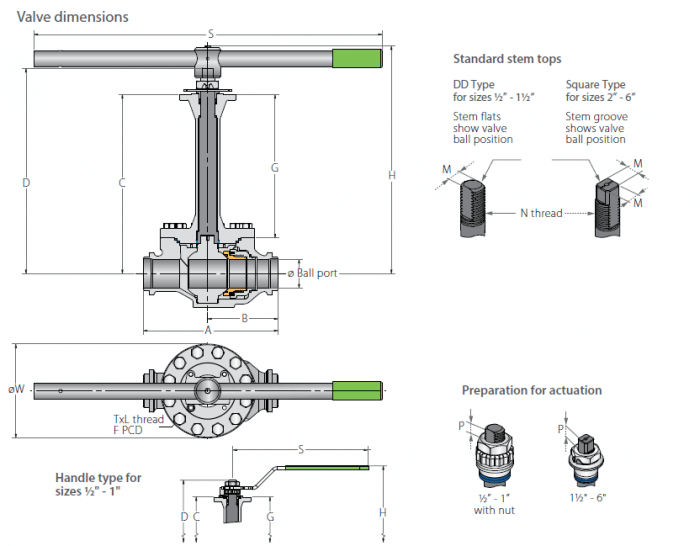

C52 Series- technical drawing
