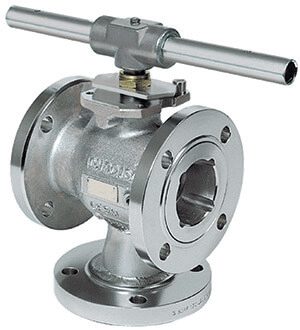

Diverter Floating Ball Flanged
D32
- Size Range
- 1/2”- 8” (DN15-DN200)
- Pressure Range
- Class #300, 50 bar, 750 psi
Habonim D32 valves are available with two types of design – bottom entry and side entry, enabling our customers to achieve desired flow patterns. Valves can be actuated pneumatically or electrically.
Read more
- Zero fugitive-emission no maintenance stem sealing.
- Double body sealing.
- Fire safe.
- 100% tested.
- 100% materials & processing back-tracking.
- Quality system approved for API 6D, PED/TPED, ATEX, SIL.
Total HermetiX Integrity Package:
- Wide range of end connections available for assembly on a generic
center section in 3 pieces series, standard or full port. - Flanged connections comply with ANSI B16.5 with standard or full
port and EN 1092 with full port.
- Wide range of end connections available for assembly on a generic
End Connections variety:
- Stainless Steel, Carbon Steel, special alloys as cast, forge or bar stock.
- Variety of polymers and elastomers for wide range of applications.
Materials:
Downloads
IOM

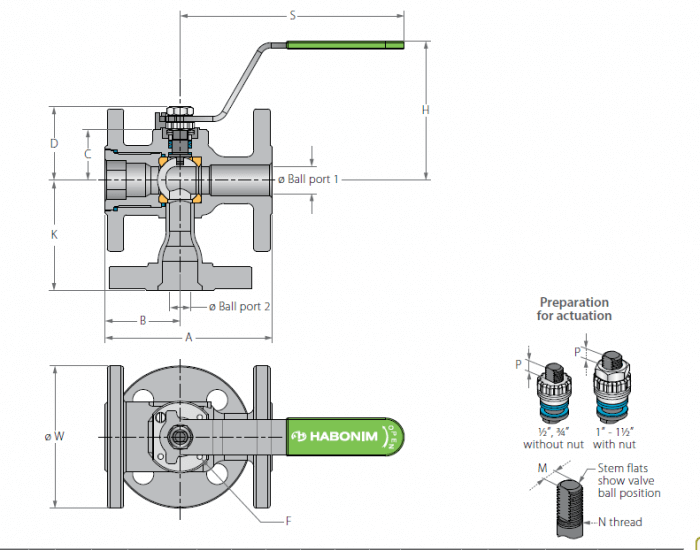

D32 Series- Technical drawing
Product Line Brochure
Industrial Catalogue
