Bola flotante, 3 piezas hasta 538 °C (1.000 °F)
Z47T
- Rango de tamaño
- 1⁄4”- 8” (DN8-DN200)
- Rango de presión
- Class #600, 100 bar, 1500 psi
[:en]
Abertura de bola en V o asiento con forma de V o ranura para aplicaciones de control
Diseño de puerto estándar o completo, forjado o fundido
ANSI B16.34 Clase 900 (espesor de pared), tamaño ¼»-2″ (DN8-DN50)
ANSI B16.34 Clase 400 (espesor de pared), tamaño 2 ½»-6″ (DN65-DN150)
Leer más
- Stainless Steel, alloys, Carbon Steel – selected to meet temperature and application. ASME
B16.34 listed cast or forged material for the valve body and ends. - Surface treatments & coatings – LTPN, HVOF Cr₃ C₂ (Chromium Carbide), HVOF WC-Co
(Tungsten Carbide) and Stellite.
- Stainless Steel, alloys, Carbon Steel – selected to meet temperature and application. ASME
Materials:
- Pressure containing parts are in compliance with ASME B16.34 (with modifications for
some series). - Leak rate to EN12266-1 Rate B (factory tested) is achieved by accurate grinding and
lapping processes. - Constant preloading of ball/seats set obtained by Inconel 718 Belleville spring.
- Pressure containing parts are in compliance with ASME B16.34 (with modifications for
Robust design:
- Designs are burst proof tested for 4 times the maximal working pressure.
- Designed and tested per testing & acceptance criteria ANSI/FCI 70-2.
Pressure tested:
Descargas
IOM

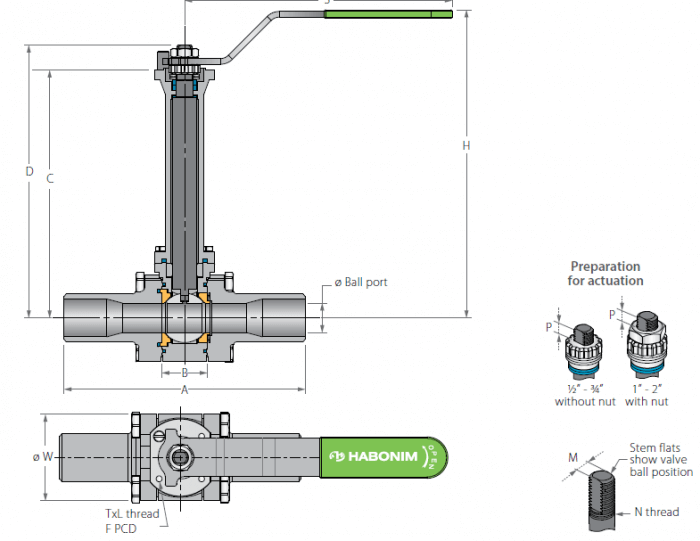

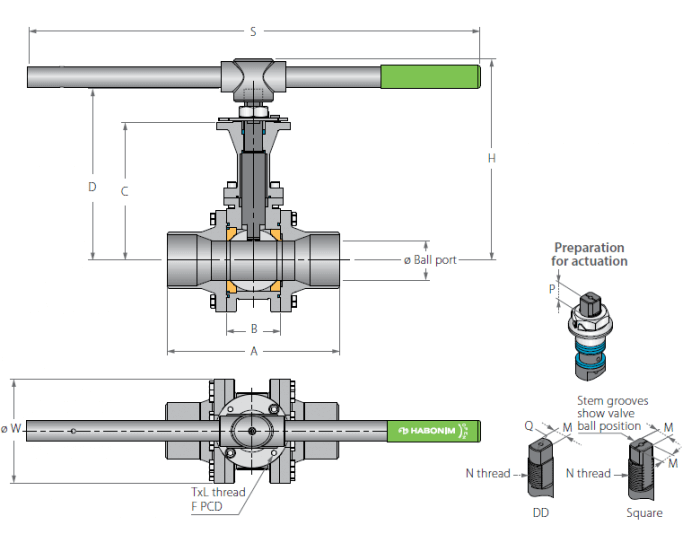

Z47T Series- technical drawing
Welding Instructions
Product Line Brochure
High temperature Catalogue
