Hydrogen Service High Pressure Floating Ball 3 Piece Threaded-Body
H24
- טווח גודל
- 1⁄4”-1 1⁄2” (DN8-DN40)
- טווח לחץ
- Class #2500, 420/500 bar, 6,000/7,250 psi
Hydrogen Service High-pressure Floating Ball 3 Piece Threaded-Body processes valves. Rated to 500 bar / 7,250 psi.
Actuator ready with ISO plate.
קרא עוד
- Threaded body
- Automation-ready with standard ISO 5211 connecting plate
- Total HermetiX Integrity package with:
ISO 15848-1 and API 641 emission standard certificated design
ISO 10497 and API607 fire-safe standard certificated design
Double body sealing
Design
- TPED Certified, up to 500bar (7,250psi) MWP
- 100% shell & inline leak tested
- Marine classification (on demand): DNV GL, LR, BV, ABS,
KR, RINA, others
Testing & Certifications
- Stainless steel body & ends
- All materials compatible for Hydrogen use
Materials
Downloads
IOM

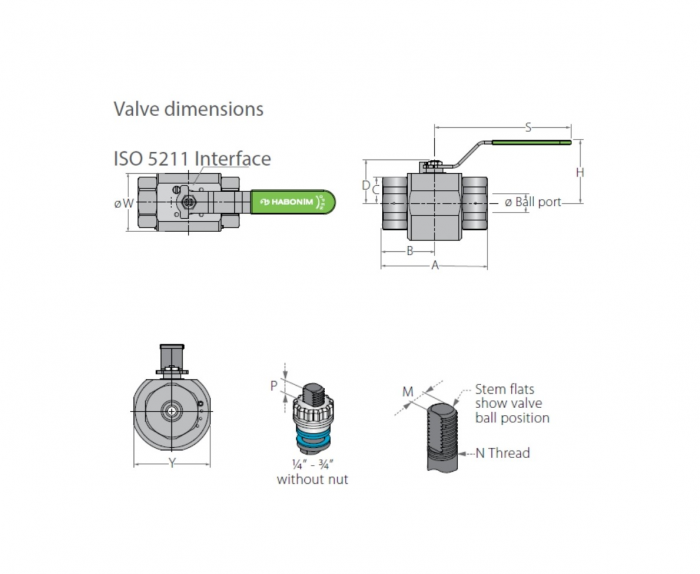

H24 Series- Technical drawing
Product Line Brochure
