קריוגני רב דרכי כדורי צף

C62


טווח גודל
1/2” – 4” (DN15-DN100)
טווח לחץ
Class #300/600, 50/100 bar, 750/1500 psi

Four horizontal ports

Minimized dead legs, compact in space for easier installation and safer operation in constrained spaces.

Variety of ball configurations for different flow patterns in both automatic and manual configurations



קרא עוד
Cryogenic Multiport Ball Valve

Special mechanical design and construction

  • Solid one-piece high torque durable stem.
  • Tight stem-to-ball directional engagement, ensures relief hole alignment.
  • Strict materials and manufacturing tolerances control.

Efficient heat transfer

  • A narrow space between the extension ID and the stem OD allows the
    stem seal to remain at an ambient temperature.

No-Trap Cavity

  • Relief hole on the upstream sphere of the ball to prevent pressure buildup in the cavity.
  • Single-side or self-pressure-relief sealing for bidirectional full pressure service.

Flexible bonnet installation angle

  • Up to 45° from the vertical axis for the 12” bonnet (per BS6364 guidelines).
  • Up to 15° from the vertical axis for the 6” bonnet (not BS6364 compliant).

Flow direction indicators (for valves with preferred flow direction)

  • Highly visible arrows on body and bonnet top.
  • “T” mark on the stem, showing relief hole direction.

Double isolation / double block and bleed designs available upon request
Clean assembly and packing

הורדות

IOM
EN
ES

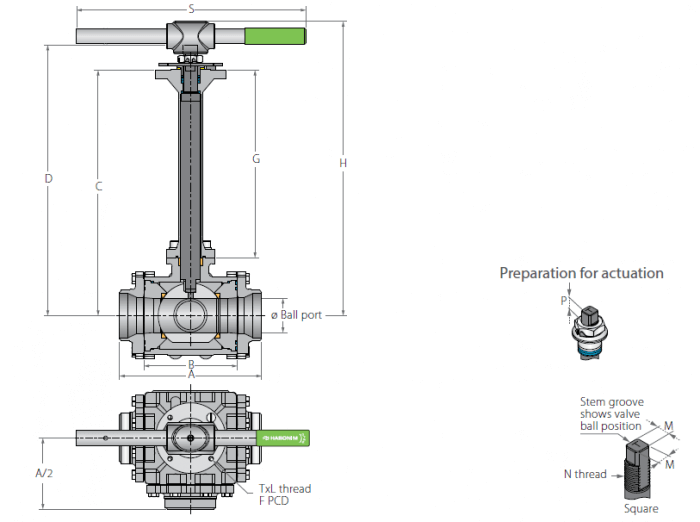

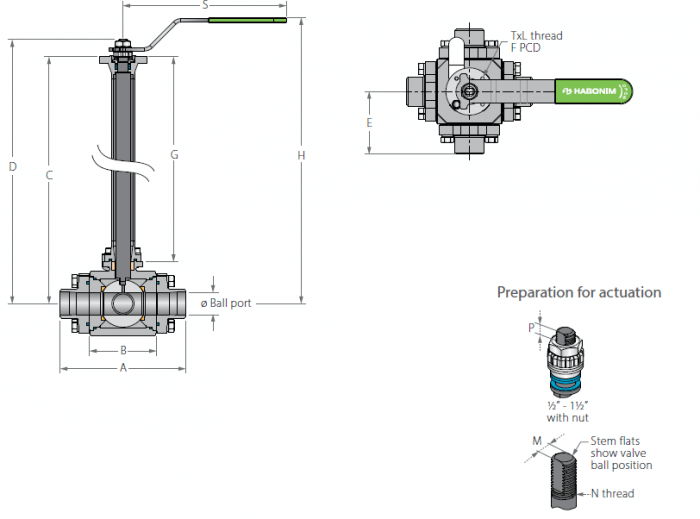

C62 Series- technical drawing
