טרניון כניסה עליונה ברז כדורי
52
- טווח גודל
- 1/2”- 6” (DN15-DN150)
- טווח לחץ
- Class #300, 50 bar, 750 psi
Design features
• Top Entry Trunnion Mounted manual or actuated
• Single DPE seat – Fully bidirectional
• Total HermetiXTM Integrity package
• Extended buttweld ends
Extended Hub optional kit
• Extends valve top over the insulation boundary
• Allows inner parts access and maintenance without dismantling the insulation
קרא עוד
- Zero fugitive-emission no maintenance stem sealing.
- Double body sealing.
- Fire safe.
- 100% tested.
- 100% materials & processing back-tracking.
- Quality system approved for API 6D, PED/TPED, ATEX, SIL.
Total HermetiX Integrity Package:
- Wide range of end connections available for assembly on a generic
center section in 3 pieces series, standard or full port. - Flanged connections comply with ANSI B16.5 with standard or full
port and EN 1092 with full port.
- Wide range of end connections available for assembly on a generic
End Connections variety:
- Stainless Steel, Carbon Steel, special alloys as cast, forge or bar stock.
- Variety of polymers and elastomers for wide range of applications.
Materials:
הורדות
Product Line

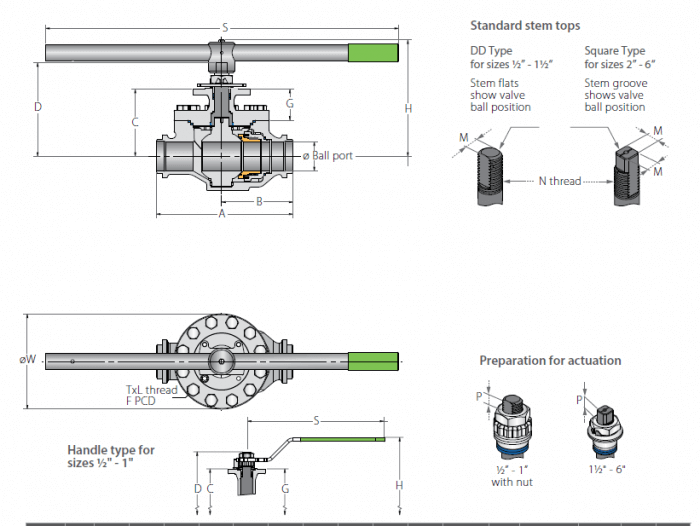

52 Series- Technical drawing
Product Line Brochure
Industrial Catalogue
