טרניון כדורי 3 חלקים

92


טווח גודל
2”-16” (DN50-DN400)
טווח לחץ
Class #300, 50 bar, 750 psi

Design features

• 3-piece robust, forged valve
• Double block
• Blowout-proof robust stem design
• Bi-directional as standard
• API 6D certified (API monogram #6D-1278)
• Fire safe designed to API 6FA, API 607, ISO 10497
• Comply with NACE MR0175/ISO 15156
• Corrosion resistant low friction bearings
• Double Piston Effect or Single Piston Effect seat design
• Mixed SPE and DPE seats design also available
• Integral top-works direct mounting pad to ISO 5211
• 6” and larger valves are equipped with lifting lugs
• 8” and above can equipped with vent and drain valves (Optional)
• Antistatic grounding between ball, stem & body



קרא עוד

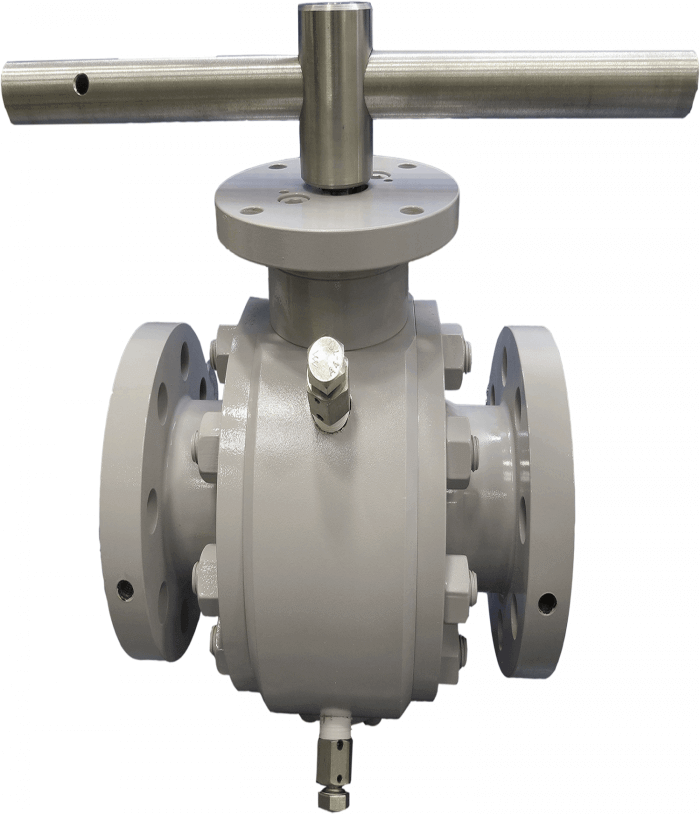

Trunnion Mounted Ball Valve

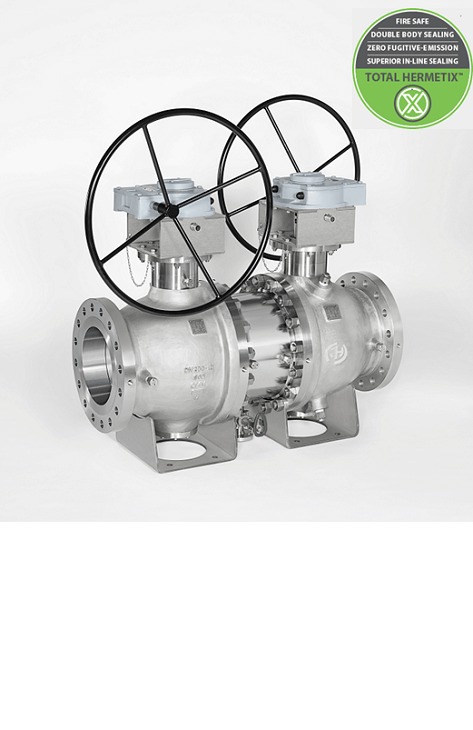

Total HermetiX Integrity Package:

  • Zero fugitive-emission no maintenance stem sealing.
  • Double body sealing.
  • Fire safe.
  • 100% tested.
  • 100% materials & processing back-tracking.
  • Quality system approved for API 6D, PED/TPED, ATEX, SIL.

End Connections variety:

  • Wide range of end connections available for assembly on a generic
    center section in 3 pieces series, standard or full port.
  • Flanged connections comply with ANSI B16.5 with standard or full
    port and EN 1092 with full port.

Materials:

  • Stainless Steel, Carbon Steel, special alloys as cast, forge or bar stock.
  • Variety of polymers and elastomers for wide range of applications.

הורדות

IOM
EN
ES

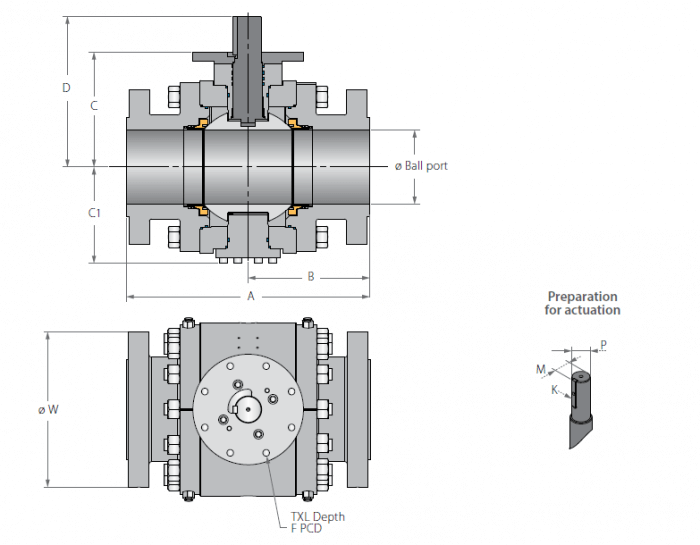

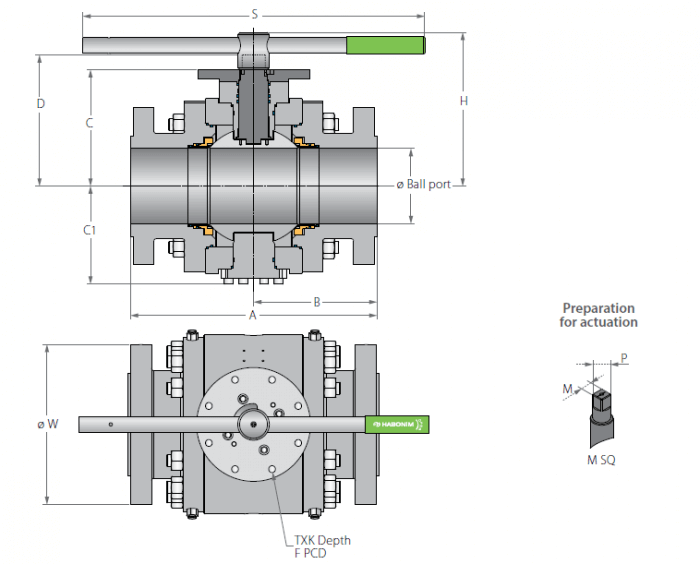

92 Series- Technical drawing
