High Pressure Floating Ball 3 Piece
24
- טווח גודל
- 1⁄4”- 1 1⁄2” (DN8-DN40)
- טווח לחץ
- Class #2500, 414 bar, 6000 psi
High-pressure instrumentation valve. Rated to 6000 psi.
Actuator ready with ISO plate.
קרא עוד
- Forged or rolled bars, sourced and stocked only from high quality mills.
Materials
- Up to 414bar (6,000psi) full Δp class 2500 depend on series and size.
High Δp (differential pressure)
- Pressure containing parts are in compliance with ASME B16.34.
- A one-size-up stem made of high tensile material complies with ASME B16.34 and API 6D
(#6D-1278) for drive train requirements provides a sufficient safety factor during operation. - A special hybrid seat design provides a higher metal seat stiffness and bubble tight shut-off
(Rate A) combined with lower operating torque compared to equivalent similar valve solutions.
Robust design
- Designs are burst-proof tested for 4 times the maximal working pressure.
Designed and tested per EN 14432:2014
Type test certified by DNV-GL (for part of the series)
Pressure tested
הורדות
IOM
Product Line

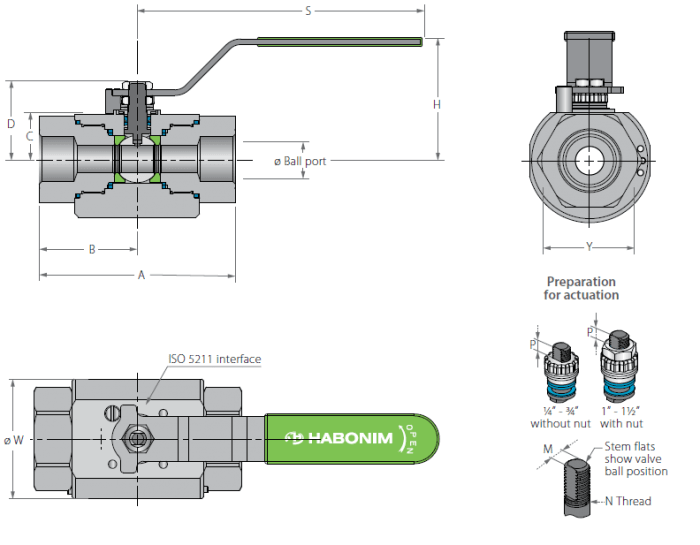

24 Series- Technical drawing
Product Line Brochure
High Pressure Catalogue
