Bola flotante bridada hasta 260 °C (500 °F)
Z77W
- Rango de tamaño
- 3”- 6” (DN80-DN150)
- Rango de presión
- Class #150, 20 bar, 290 psi
-60 °C a 260 °C (-76 °F a 500 °F)
La serie de válvulas de bola con asiento metálico de Habonim es resistente y está diseñada para soportar las condiciones de proceso más difíciles, incluida una combinación de temperaturas extremas, alta presión y fluidos de proceso abrasivos. Su diseño superior y su construcción rígida hacen que las válvulas de asiento metálico Habonim sean la elección correcta para las aplicaciones más exigentes de la industria.
Leer más
- Stainless Steel, alloys, Carbon Steel – selected to meet temperature and application. ASME
B16.34 listed cast or forged material for the valve body and ends. - Surface treatments & coatings – LTPN, HVOF Cr₃ C₂ (Chromium Carbide), HVOF WC-Co
(Tungsten Carbide) and Stellite.
- Stainless Steel, alloys, Carbon Steel – selected to meet temperature and application. ASME
Materials:
- Pressure containing parts are in compliance with ASME B16.34 (with modifications for
some series). - Leak rate to EN12266-1 Rate B (factory tested) is achieved by accurate grinding and
lapping processes. - Constant preloading of ball/seats set obtained by Inconel 718 Belleville spring.
- Pressure containing parts are in compliance with ASME B16.34 (with modifications for
Robust design:
- Designs are burst proof tested for 4 times the maximal working pressure.
- Designed and tested per testing & acceptance criteria ANSI/FCI 70-2.
Pressure tested:
Descargas
IOM

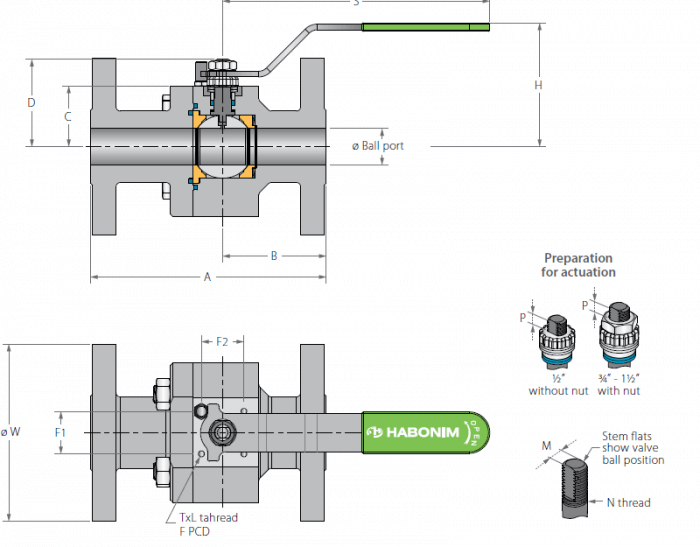

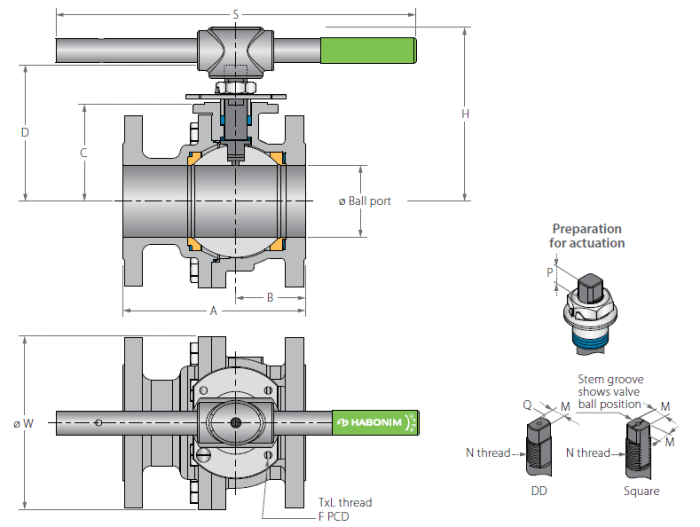

Z77W Series- Technical drawing
Product Line Brochure
High temperature Catalog
