Criogénica, bridada, puerto completo Bola flotante
C74
- Rango de tamaño
- 1/2”- 8” (DN40-DN200)
- Rango de presión
- Class #300, 50 bar, 750 psi
Conexiones de los extremos bridadas, puerto completo ANSI 300
Transferencia de calor eficiente
■ El estrecho espacio entre el DI de la extensión y el DE del vástago hace posible que el sello del vástago permanezca a temperatura ambiente
Vástago
■ A prueba de «expulsión»
■ Sólido vástago de una pieza
■ Acoplamiento ajustado de vástago a bola
■ Alta durabilidad del par
Leer más
- Solid one-piece high torque durable stem.
- Tight stem-to-ball directional engagement, ensures relief hole alignment.
- Strict materials and manufacturing tolerances control.
Special mechanical design and construction
- A narrow space between the extension ID and the stem OD allows the
stem seal to remain at an ambient temperature.
- A narrow space between the extension ID and the stem OD allows the
Efficient heat transfer
- Relief hole on the upstream sphere of the ball to prevent pressure buildup in the cavity.
- Single-side or self-pressure-relief sealing for bidirectional full pressure service.
No-Trap Cavity
- Up to 45° from the vertical axis for the 12” bonnet (per BS6364 guidelines).
- Up to 15° from the vertical axis for the 6” bonnet (not BS6364 compliant).
Flexible bonnet installation angle
- Highly visible arrows on body and bonnet top.
- “T” mark on the stem, showing relief hole direction.
Double isolation / double block and bleed designs available upon request
Clean assembly and packing
Flow direction indicators (for valves with preferred flow direction)
Descargas

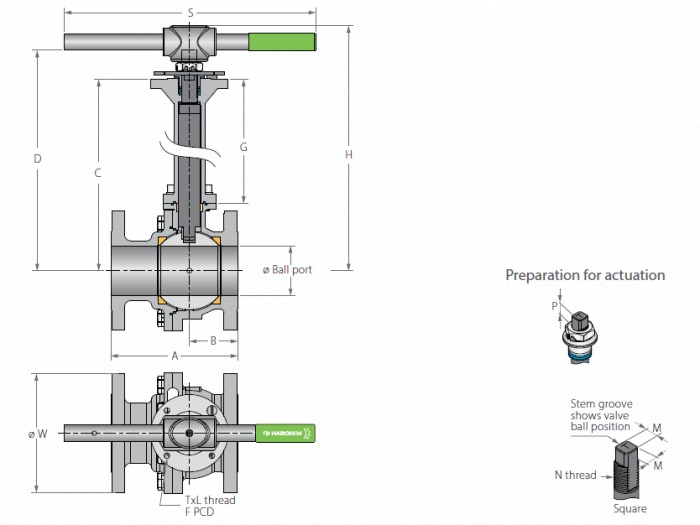

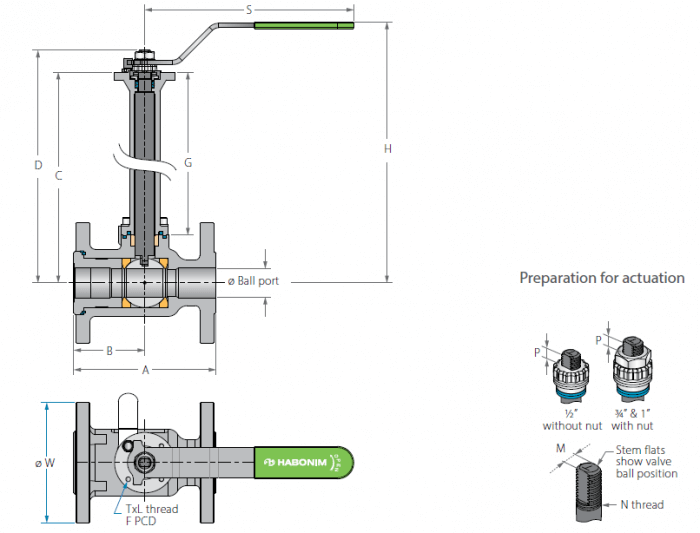

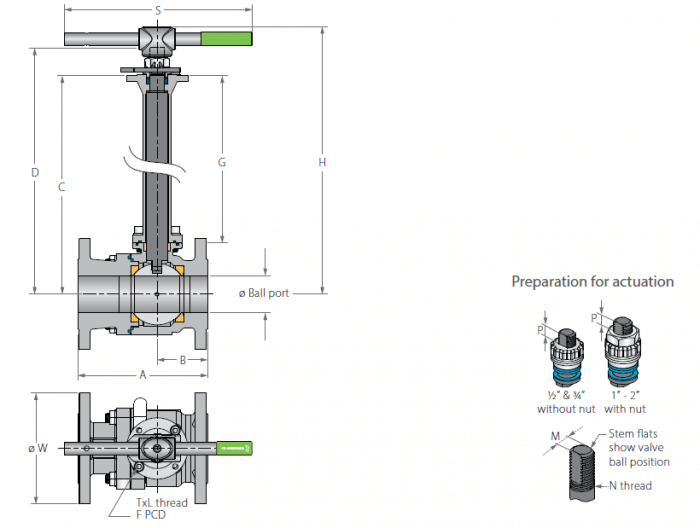

C74 Series- technical drawing
IOM
Product Line Brochure
Cryogenic Catalogue
