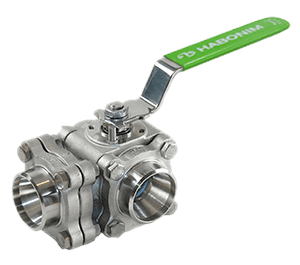

Entrada lateral Bola flotante, 3 piezas
S47
- Rango de tamaño
- ½”- 6” (DN15-DN150)
- Rango de presión
- Class #600. 100 bar, 1500 psi
Entrada lateral
Dos puertos con asiento con un puerto común sin asiento y perpendicular al orificio del vástago. Esta combinación permite desviar o mezclar el flujo.
Leer más
- Zero fugitive-emission no maintenance stem sealing
- Double body sealing
- Fire safe
- 100% tested
- 100% materials & processing back-tracking
Total HermetiX:
- Wide range of end connections available for assembly on a generic center section in
3 piece series, standard or full port. - Flanged connections comply with ANSI B16.5 with standard or full
- Wide range of end connections available for assembly on a generic center section in
End Connections variety:
Type tested certified by leading certification bodies and other on request (for part of the series).
Certifications
Descargas
IOM

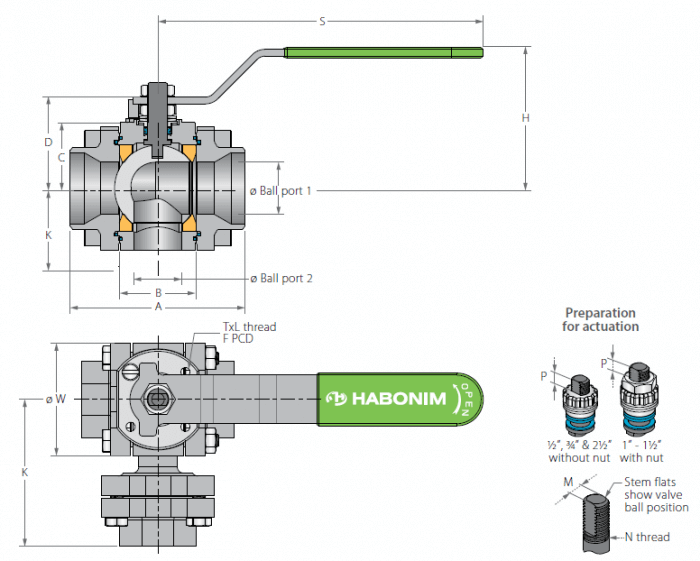

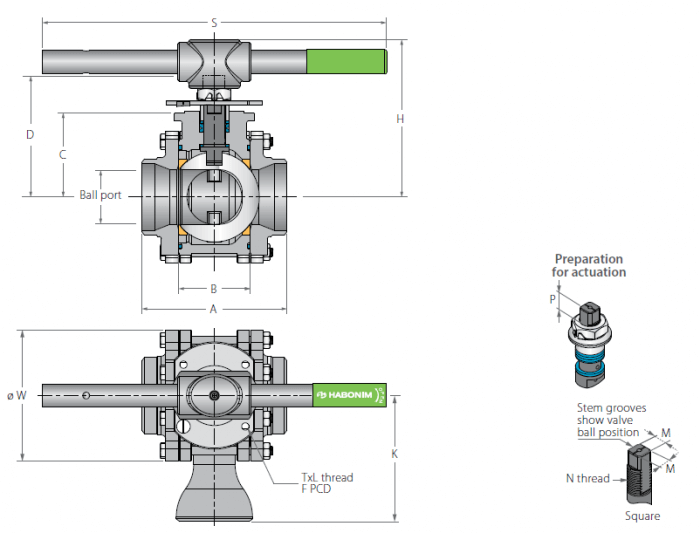

S47 Series- Technical drawing
Welding Instructions
Product Line Brochure
Industrial Catalogue
