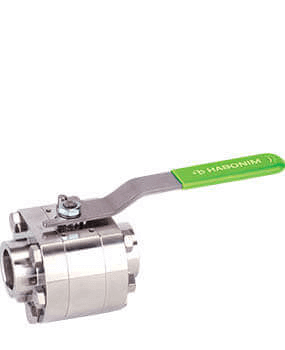

Flotante de alta presión De bola, 3 piezas
27
- Rango de tamaño
- 1⁄4”-8 ” (DN8-DN200)
- Rango de presión
- Class #1500/2500, 250/414 bar, 3750/6000 psi
Económica Clase ANSI hasta 2500.
Suave flujo bidireccional, cierre apretado y adaptabilidad instantánea a las cambiantes variaciones de presión y temperatura.
Leer más
- Forged or rolled bars, sourced and stocked only from high quality mills.
Materials
- Up to 414bar (6,000psi) full Δp class 2500 depend on series and size.
High Δp (differential pressure)
- Pressure containing parts are in compliance with ASME B16.34.
- A one-size-up stem made of high tensile material complies with ASME B16.34 and API 6D
(#6D-1278) for drive train requirements provides a sufficient safety factor during operation. - A special hybrid seat design provides a higher metal seat stiffness and bubble tight shut-off
(Rate A) combined with lower operating torque compared to equivalent similar valve solutions.
Robust design
- Designs are burst-proof tested for 4 times the maximal working pressure.
Designed and tested per EN 14432:2014
Type test certified by DNV-GL (for part of the series)
Pressure tested
Descargas
IOM
Product Line

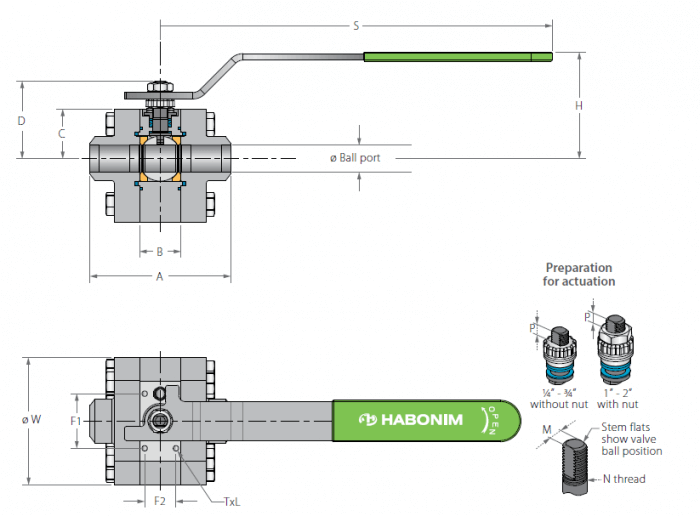

27 Series- Technical drawing
Welding Instructions
Product Line Brochure
High Pressure Catalogue
