1⁄2”- 8” (DN15-DN200)
ANSI Class 150
Standard or full port design, forged or cast.
The 31/32 Series are Habonim’s line of one piece fully flanged reduced bore valves in ANSI Class 150 and ANSI Class 300. Habonim’s flanged valves offer tight shutoff, long service life and high durability with exceptional performance in many service applications under the most sever working conditions.
■ Step-less characterized by step-less pressure and flow control for fast response times
■ High Cv
■ Less stem seal wear
■ Small size, light weight
■ Less cavitation damage
■ High recovery
■ Various surface treatment and coatings
■ Wide rangeability
■ High repeatability
■ Zero backlash
■ Easy to maintain

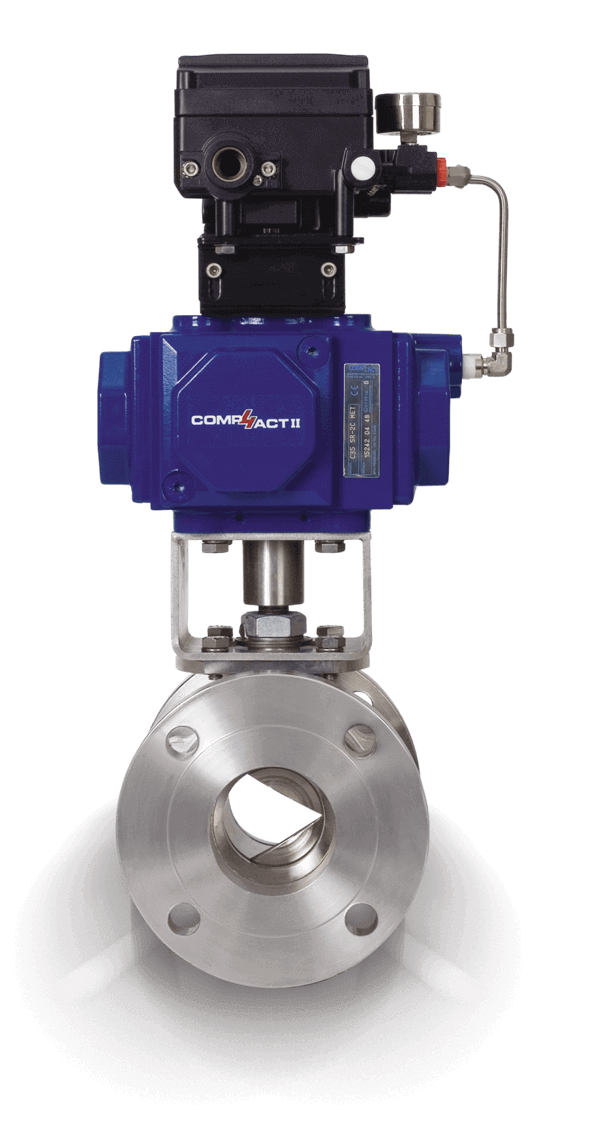

The COMPACT actuator is a quarter-turn rack & pinion pneumatic actuator that doubles the torque and cut by half the piston travel of standard pneumatic actuators.
The superior performance is achieved by Habonim’s patented four piston design, which generates torque around a centrally located piston, this translates into:
• Double the power for the same size actuator or Half the size for the same amount of power
• Much faster opening and closing time.
A full range of Mounting Kits is available, allowing optimized mounting and use of the COMPACT actuator for valve automation with Habonim’s valves and simple integration with valves that have a standard ISO-plate mounting interface.
Valve Automation Packages is offered based on Habonim’s standard and costume made valves and actuators or as costume made packages with valves, actuators and top-works per customer requests.
Mounting kits play a major role in the proper functioning of an automated unit. The mounting kit is designed for safe installation and operation of the complete unit, having rigid construction and no sharp corners. This well-engineered product provides a wide range of movement for the spanner, allowing for easy installation and maintenance, as well as maximum worker safety.
Whether pairing Habonim valves with the Habonim Compact™ actuators, customizing a mounting kit to pair the Habonim Compact™ actuator with other valve brands or mounting Habonim valves on a wide variety of other actuator brands; Habonim is a one stop shop, offering valve automation linkage hardware for a wide range of applications.More info
