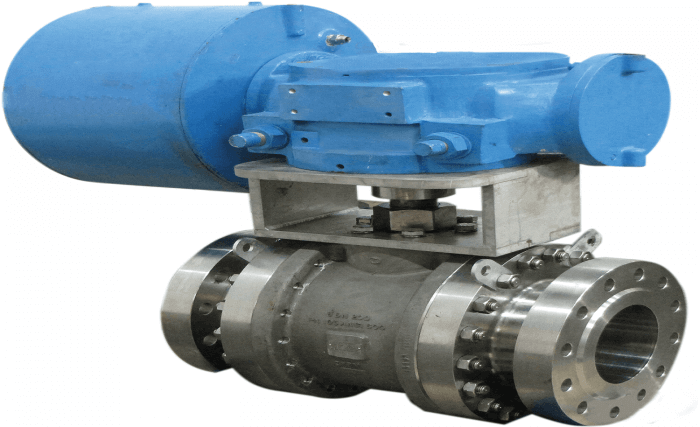

Floating Ball 3 Piece

26W Series RTJ / XBW

Size range:

2”- 8” (DN50-DN200)

Pressure range::

Class 600

The 26 series is Habonim’s cost effective Class 600 cast valve. This line is design in full compliance with ANSI B16.34 and API 6D standards. Its robust construction is built for endurance in the most demanding applications. As standard the 26 series include Habonim’s unique hybrid seats which combine the strength of a metallic housing with a polymer insert to withstand operation at the maximum ANSI B16.34 Class 600 rating differential pressure. The 26 Series is available in a variety of cast carbon steels, WCB, LCB, LC1, and in response to global market demands, it is also available in additional materials including stainless steel, nickel and exotic alloys. All of this contributes to making Habonim’s 26 Series an ideal solution for the Oil & Gas market.

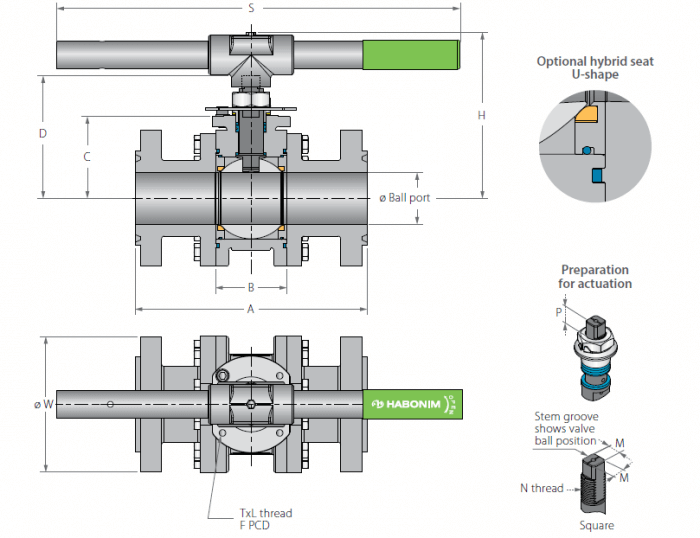

Technical Drawing IOM Ordering Code

Actuation

The COMPACT actuator is a quarter-turn rack & pinion pneumatic actuator that doubles the torque and cuts the piston travel by half that of standard pneumatic actuators.

The superior performance is achieved by Habonim’s patented four piston design, which generates torque around a centrally located piston, this translates into:
• Double the power for the same size actuator, or Half the size for the same amount of power.
• Much faster opening and closing times.
A full range of Mounting Kits are available, allowing optimized mounting and use of the COMPACT actuator for valve automation with Habonim’s valves and simple integration with valves that have a standard ISO-plate mounting interface.
Valve Automation Packages are offered based on Habonim’s standard and custom made valves and actuators, or as custom made packages with valves, actuators and top-works per customer requests.

More info

Special use

Ammonia services ball valve (M):

Habonim’s ammonia service ball valves are suited to provide optimal protection and functionality for use in severe ammonia service applications.

Oxygen services ball valve (O):

Habonim’s ball valves for oxygen service are suited to be used with both liquid and gaseous oxygen, cleaned and assembled with required measures for a safe use in oxygen service equipment and avoid valve contamination to the media purity.

Chlorine services ball valve (K):

Habonim’s ball valves for chlorine service are designed for use with chlorine, cleaned and assembled with required measures for a safe use in chlorine service equipment and avoid valve contamination to the media purity.

More info

Accessories

PERFORMING IN DEMANDING APPLICATIONS
