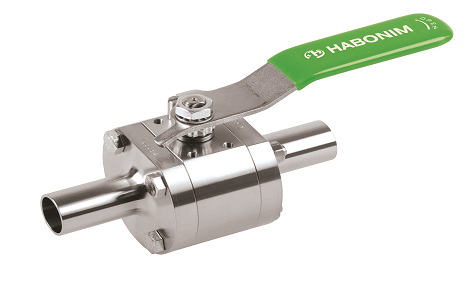

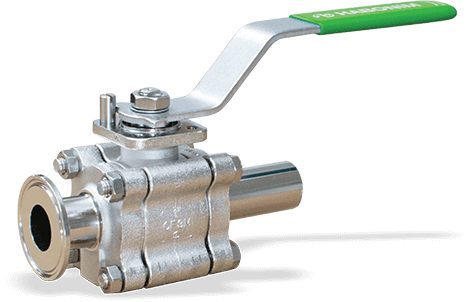

ASME BPE 3 חלקים כדור צף

48

Size range:

1/2”- 6” (DN15-DN150)

Pressure range::

Class 300

Complies with the ASME BPE standard for applications in which cleanability and drainability are essential for product quality.
Patented HermetiX™ stem seal, made from FDA-approved polymer materials. The valve port diameter is identical to the tube inner diameter so that no expansion or contraction can take place inside the system, resulting in full drainage and zero traces that could cause contamination.
" To provide superior welding quality, to avoid rouging on austenitic stainless steel surfaces, and corrosion attack on welding areas. Metal parts are defined, as standard, with low ferrite and controlled sulfur". Upon request, a forged 316L stainless steel material with ferrite content less than 1% is also available.

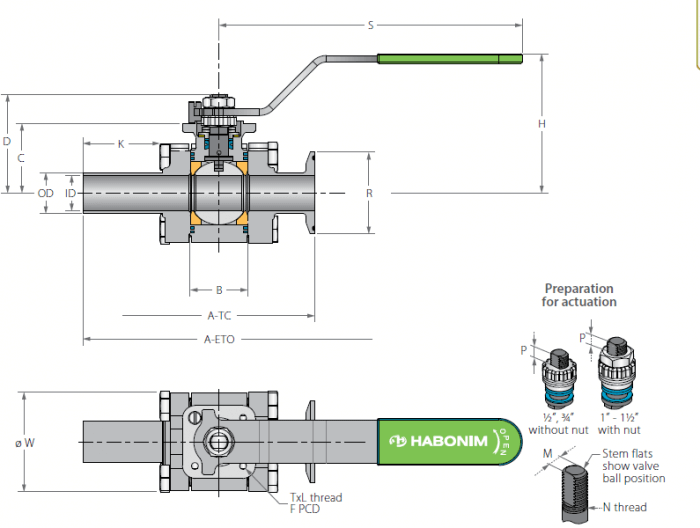

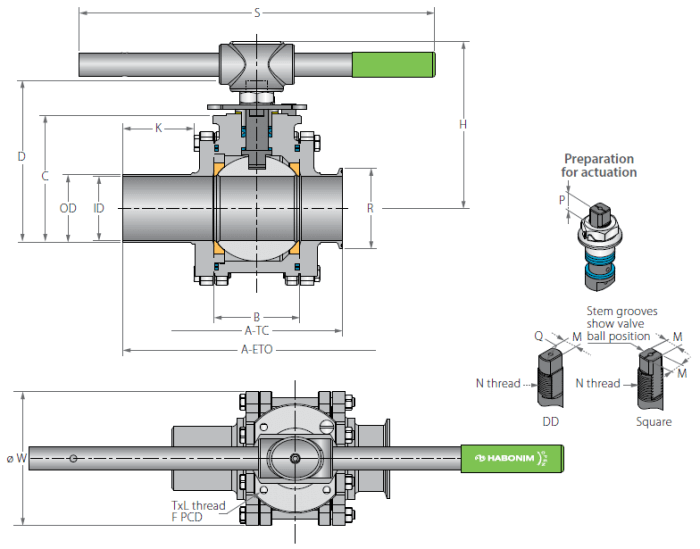

Technical Drawing IOM הוראות הזמנה

48
48
48
48 מפעיל
48

מפעיל

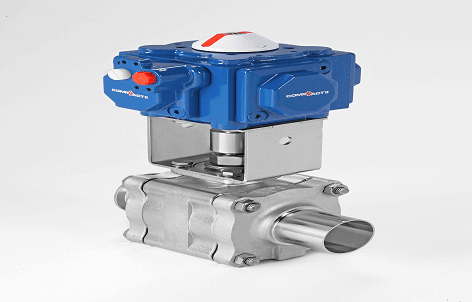

The COMPACT actuator is a quarter-turn rack & pinion pneumatic actuator that doubles the torque and cut by half the piston travel of standard pneumatic actuators.
The superior performance is achieved by Habonim’s patented four piston design, which generates torque around a centrally located piston, this translates into:
• Double the power for the same size actuator or Half the size for the same amount of power
• Much faster opening and closing time.
A full range of Mounting Kits is available, allowing optimized mounting and use of the COMPACT actuator for valve automation with Habonim's valves and simple integration with valves that have a standard ISO-plate mounting interface.
Valve Automation Packages is offered based on Habonim's standard and costume made valves and actuators or as costume made packages with valves, actuators and top-works per customer requests.

מידע נוסף

שימושים מיוחדים

Ammonia services ball valve (M):

Habonim's ammonia service ball valves are suited to provide optimal protection and functionality for use in severe ammonia service applications.

Oxygen services ball valve (O):

Habonim's ball valves for oxygen service are suited to be used with both liquid and gaseous oxygen, cleaned and assembled with required measures for a safe use in oxygen service equipment and avoid valve contamination to the media purity.

Chlorine services ball valve (K):

Habonim's ball valves for chlorine service are designed for use with chlorine, cleaned and assembled with required measures for a safe use in chlorine service equipment and avoid valve contamination to the media purity.

מידע נוסף

אביזרים נלווים

PERFORMING IN DEMANDING APPLICATIONS
