Flanged Valves

31G/32G Series

Size range:

1/2”- 8” (DN15-DN200)

Pressure range::

ANSI Class 150/300

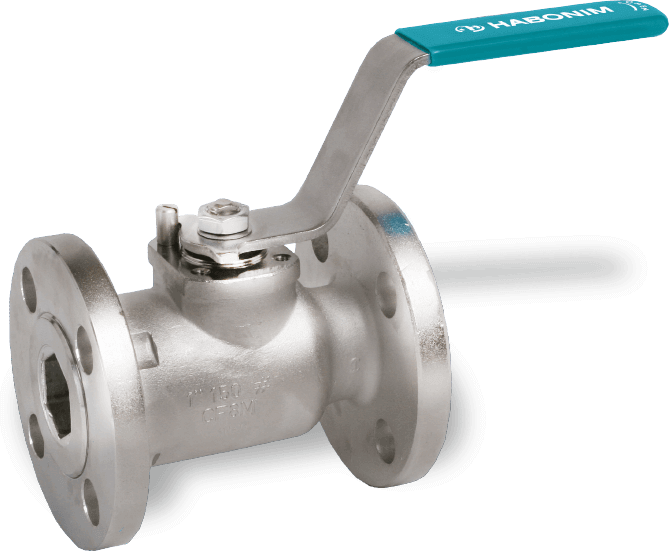

The 31G/32G Series are Habonim's line of one piece fully flanged reduced bore valves in ANSI class 150 and ANSI class 300 which prevents media contamination from graphite particles. Habonim's flanged valves offer tight shutoff, long service life and high durability with exceptional performance in many service applications under the most sever working conditions.

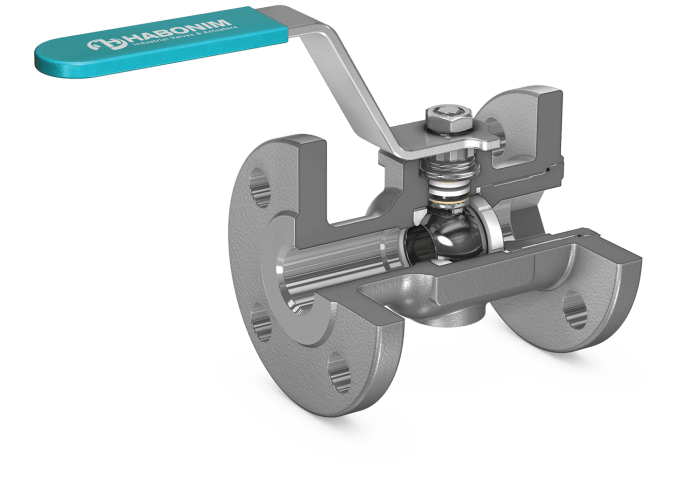

  • 31G/32G One-piece design valves

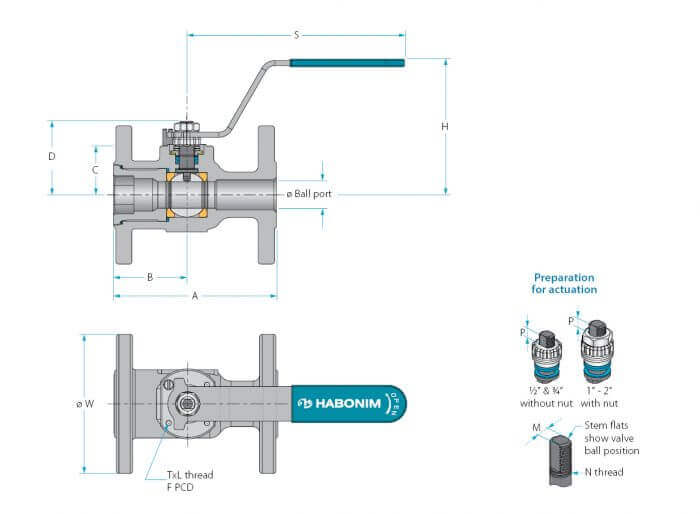

  • 31G/32G Flanged valves DN15-DN50

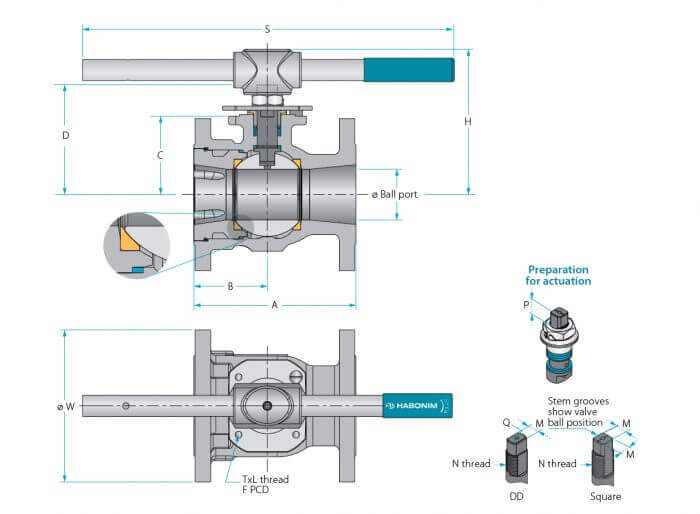

  • 31G/32G Flanged valves DN80-DN200

  • One-piece design Flanged Valve - HermetiX(TM) stem seal

מפעיל

The COMPACT actuator is a quarter-turn rack & pinion pneumatic actuator that doubles the torque of standard pneumatic actuators. The superior performance is achieved by Habonim’s patented four piston design, which generates torque around a centrally located piston. This translates into double the power for the same size actuator or half the size for the same amount
of power.



מידע נוסף

שימושים מיוחדים

ערכת הרכבה הינה בעלת תפקיד מרכזי בתפקוד תקין של יחידה אוטומטית. הערכה מיועדת להתקנה ותפעול בטוח של היחידה השלמה, ותוכננה בצורה המאפשרת התקנה קלה ותחזוקה פשוטה, תוך שמירה על בטיחות עובדים מקסימלית.

ערכת ההרכבה של בונים תוכננה כך שתתאים למגוון רחב של יישומים. הערכה מתאימה למפעילי COMPACT גם כאשר מדובר בהתקנה על ברז של יצרן אחר או עבור ברז הבונים המפוקד ע"י מפעיל של יצרן אחר.

מידע נוסף

אביזרים נלווים
